Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

Powdercoated price exc. VAT

Spot V1

50mm bolt ctrs.

N/A

SVA V1

£75.08

£108.08

Spot V2

40mm bolt ctrs.

N/A

SVA V2

£157.19

£184.69

Spot V3

50mm bolt ctrs.

N/A

SVA V3

£143.00

£170.50

SVA Spot Handbrake V1, V2, V3

Disc size

Colour

Hi Spec SVA Spot Handbrake V2

Hi Spec SVA Spot Handbrake V1

For more information on Hi Spec Calipers please call 01322 286 850.

Hi Spec SVA Spot Handbrake V3

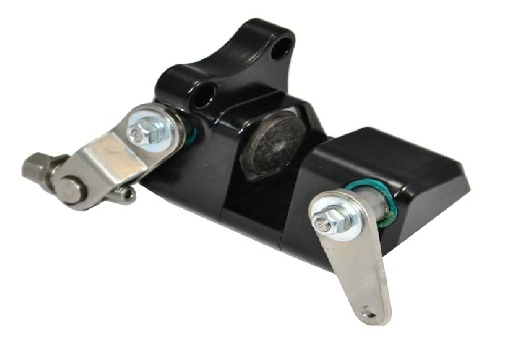

     Spot V3 - Description


  Our most powerful mechanical handbrake spot caliper with improved lightweight construction.

 Over twice the clamping force of our V2 Spot caliper.

 Large pad area and new mechanism provides ultra-high clamping force.

 Enough clamping force to hold heavier vehicles on steep hills.

 Fully adjustable, easy to adjust and low maintenance.

 CNC Machined Billet aluminum body constructed from high quality 6082t6.

     Spot V3 - Technical



 Weight- approx.  0.78Kg per caliper.

 Pad thickness- 8.6mm total and 6mm thick friction material.

 Pad surface area 11.94cm².

 Billet aluminum body constructed from high quality 6082t6.

 Suitable for disc thickness from to 6mm to 36mm*

 Suitable for almost any diameter of disc.

 Mounting Lug P.C.D. - 50mm.

 Sliding single piston caliper.

 Caliper mechanism ratio of 8.4:1(low) or 10.5:1(high).

 Clamping force** - 8.4:1= approx. 1008kg.

                                          - 10.5:1= approx. 1260kg.

          *Contact us if you require a spacer size that is not listed.

        ** Assuming handbrake lever ratio of 6:1 and 20kg force applied to handbrake.


hispec-Spot V3-32mm-caliper.pdf

Click for V3 3D Drawings

v3-lug dimensions.pdf

Click for V3 Line Drawings

Handbrake Cable to fit  V1, V2, V3

URL: http://https://www.hispecmotorsport.co.uk/handbrake-cables.html

 Click to Order Cable

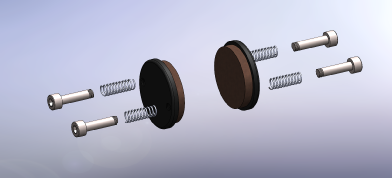

Brake Pads for V3

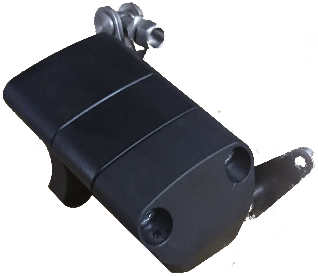

     Spot V1 - Description

 Our simple version 1 handbrake spot caliper to fit most discs.

 Ideal for lightweight vehicles up to approx. 750kg.

 Simple lightweight construction.

 CNC Machined billet aluminum body constructed from high quality 6082t6.

 Easy to fit lug mount caliper.



     Spot V1 - Technical

 Weight - approx. 500g per caliper.

 Pad thickness - 2.8mm material/ 6.7mm total.

 Pad surface area - 5.94cm.

 Pad swept area - 29.25mm.

 Mounting Lug P.C.D. - 50mm.

 Billet aluminum body constructed from high quality 6082t6.

 Suitable for disc thickness from to 6mm to 36mm*

 Clamping force** - 13:1= approx. 780kg.

                                               - 10:1= approx. 600kg.

      *Contact us if you require a spacer size that is not listed.

      ** Assuming handbrake lever ratio of 6:1 and 10kg force applied to handbrake.

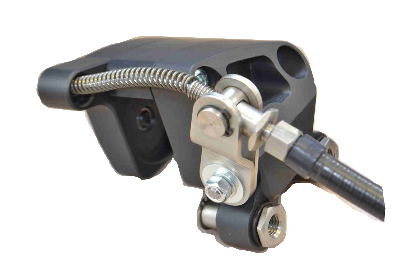

    Spot V2 - Description

 Version 2 of Spot caliper- improved mechanism, stylish re-design.

 Ideal for mid weight vehicles.

 Sufficient clamping force to hold vehicle on still on steep hills.

 CNC Machined Billet aluminum body constructed from high quality 6082t6.

 Will eventually be discontinued in favor of our superior Spot V3.


   Spot V2 - Technical

 Weight - approx. 1kg.

 Pad surface area- 5.94cm.

 Pad thickness - 3.8mm material/6.7mm total.

 Billet aluminum body constructed from high quality 6082t6.

 Suitable for disc thickness from to 6mm to 36mm*

 Suitable for almost any diameter of disc.

 Mounting Lug P.C.D. - 40mm.

 Clamping force** - 8.4:1= approx. 1008kg.

                                             - 10.5:1= approx. 1260kg.

           *Contact us if you require a spacer size that is not listed.

          ** Assuming handbrake lever Ratio of 6:1 and 20kg force applied to handbrake.

SPOT V3 SET UP GUIDE.docx

Click for V3 Set Up Guide

1 set of pads for V1 SVA £30.00 + vat

Hi-Spec V1 SPOT CALIPER (2).pdf

Hi Spec “V1” Spot Handbrake Caliper.

Click for info
