Hispec RX152-6 and RS152-6 range

 Disc/Rotor




 Disc/Rotor



 Disc/Rotor

 Rotor

 Rotor


 Disc/Rotor

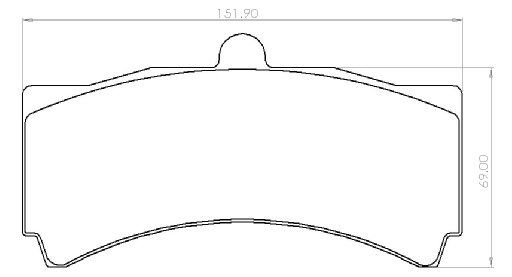

Pad specifications:


Pad type

RS-152

Pad surface area

78.99 cm2

Pad thickness

13.3mm material / 18.5mm total

Pad volume

105.06 cm3

Typical application:

● Ultra heavy duty front caliper for Rotor 360mm to 390mm

Features

● 9 Piston option


● High temperature EPDM seals


● Billet aluminium body race Caliper


● Stainless steel wear plates


● Extra strengthening bridge plate


● Billet aluminium piston,   Aluminium anti knock back piston,    DUAL piston

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

RS-152 radial 360mm to 390mm

Radial 154mm ctrs.

28mm

RS1526360       154

£350.00

RX-152 radial 360mm to 390mm

Radial 154mm ctrs.

30mm

RS1526380       210

£375.00

RS-152 radial 360mm to 390mm

Radial 210mm ctrs.

28mm

RX1526360       154

£370.00

RX-152 radial 360mm to 390mm

Radial 210mm ctrs.

30mm

RX1526380       210

£395.00

Click here to buy brake pads

HiSpec DUAL  + knock back Pistons Explained


Click on piston

Piston

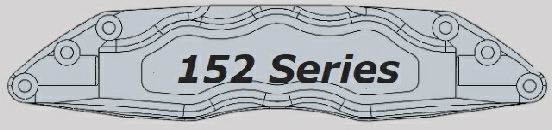

Hispec Line drawing  RS152-6 / RX152-6


Click the image to view technical drawing

25.4mm

25.4mm

25.4mm

1520mm

Special +£75

27.4mm

27.4mm

27.4mm

1769mm

Special +£25

31.2mm

31.2mm

31.2mm

2294mm

Special +£50

31.3mm

27.4mm

27.4mm

1944mm

Special +£50

38.6mm

27.4mm

27.4mm

2349mm

Special +£50

38.6mm

31.2mm

31.2mm

2699mm

Special +£50

38.6mm

31.2mm

27.4mm

2524mm

Standard option

38.6mm

34.6mm

27.4mm

2700mm

Special +£50

38.6mm

34.6mm

31.2mm

2875mm

Special +£25

Piston 1 size

Piston 2 size

Piston 3 size

Piston Area (mm2
