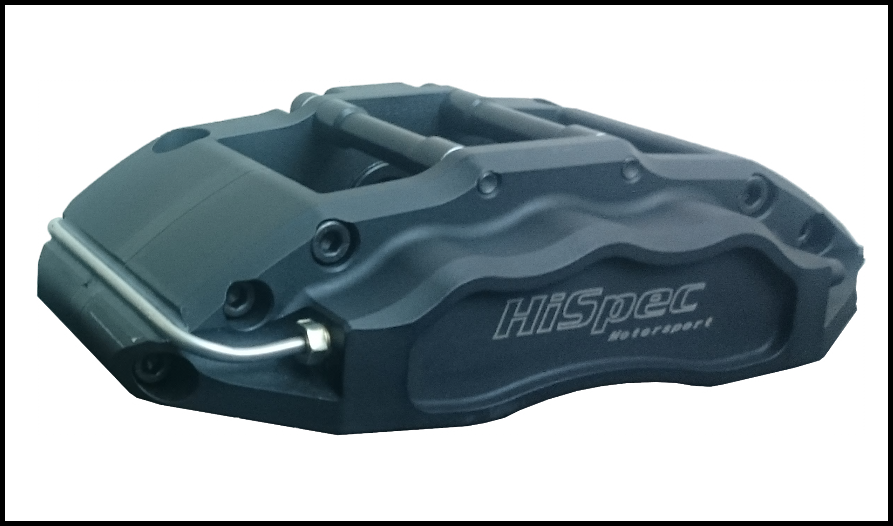

HiSpec RX132-6 and RS132-6 range

 Disc/Rotor



 Disc/Rotor

 Rotor

 Rotor


 Disc/Rotor





Typical application:

● Heavy duty front caliper for 13”-15”-16”-17”-18” wheels

Features

● Radial mount 154mm, 180mm, 210mm ctrs


● High temperature EPDM seals


● Billet aluminium body Race caliper


● Stainless steel wear plates


● Billet aluminium pistons, aluminium anti knock back piston, DUAL piston, Dual + knock back

Click here to buy brake pads

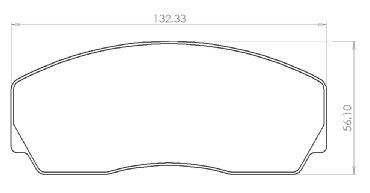

Pad specifications:


Pad type

RS-132

Pad surface area

59.66 cm2

Pad thickness

12.5mm material / 17.2mm total

Pad volume

74.58 cm3

Variant

Mount type

Piston depth

Part number

 price exc. VAT

RX & RS-132 radial 275mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1326275154

RX£315.0  -  RS£285.0

RX & RS-132 radial 300mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1326300154

RX£315.0  -  RS£285.0

RX & RS-132 radial 335mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1326335154

RX£315.0  -  RS£285.0

RX & RS-132 radial 360mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1326360154

RX£315.0  -  RS£285.0

RX & RS-132 radial 300mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1326300180

RX£345.0  -  RS£315.0

RX & RS-132 radial 335mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1326335180

RX£345.0  -  RS£315.0

RX & RS-132 radial 360mm

Radial 130mm ctrs.

RX 30mm RS 26mm

RX - RS1326360130

RX£3145.0  -  RS£315.0

RX & RS-132 radial 360mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1326360180

RX£345.0  -  RS£315.0

RX & RS-132 radial 360mm

Radial 210mm ctrs.

RX 30mm RS 26mm

RX - RS1326360210

RX£345.0  -  RS£315.0

Piston 1

Piston 2

Piston 3


Surface Area (mm2)



2 x 27.4mm

2 x 27.4mm

2 x 27.4mm


1769mm sq


Option special (+£25)

2 x 31.2mm

2 x 31.2mm

2 x 31.2mm


2294mm sq


Option special (+£25)








2 x 31.2mm

2 x 27.4mm

2 x 27.4mm


1944mm sq


Option special (+£50)

2 x 38.6mm

2 x 27.4mm

2 x 27.4mm


2349mm sq


Option special (+£25)

2 x 38.6mm

2 x 31.2mm

2 x 31.2mm


2699mm sq


Standard option

2 x 38.6mm

2 x 31.2mm

2 x 27.4mm


2524mm sq


Option special (+£25)

2 x 38.6mm

2 x 34.6mm

2 x 31.2mm


2875mm sq


Option special (+£25)

Piston option

R132-4-race-hispec-caliper

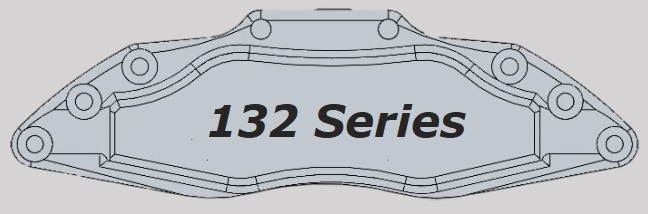

Hispec Line drawing  RS132-6 / RX132-6


Click the image to view technical drawing

HiSpec DUAL  + knock back Pistons Explained


Click on piston


Piston
