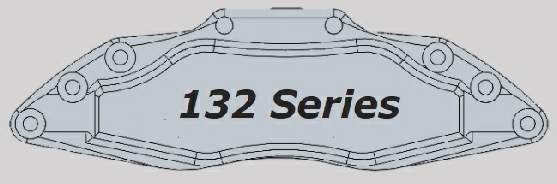

132-4 range

 Disc/Rotor



 Disc/Rotor

 Rotor

 Rotor


 Disc/Rotor





Typical application:

● Heavy duty front caliper for 13”-15”-16”-17”-18” wheels

Features

● Radial mount 154mm, 180mm, 210mm ctrs.


● 11 Piston Optional


● High temperature EPDM seals

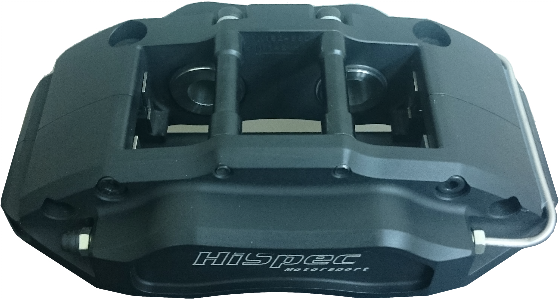

● Billet aluminium body Race caliper


● Stainless steel wear plates


● Billet aluminium piston,   Aluminium anti knock back piston,  DUAL piston

Variant

Mount type

Piston depth

Part number

 price exc. VAT

RX & RS-132 radial 275mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1324275154

£228.00

RX & RS-132 radial 300mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1324300154

£228.00

RX & RS-132 radial 335mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1324335154

£228.00

RX & RS-132 radial 360mm

Radial 154mm ctrs.

RX 30mm RS 26mm

RX - RS1324360154

£228.00

RX & RS-132 radial 300mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1324300180

£228.00

RX & RS-132 radial 335mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1324335180

£238.00

RX & RS-132 radial 360mm

Radial 130mm ctrs.

RX 30mm RS 26mm

RX - RS1324360130

£238.00

RX & RS-132 radial 360mm

Radial 180mm ctrs.

RX 30mm RS 26mm

RX - RS1324360180

£245.00

RX & RS-132 radial 360mm

Radial 210mm ctrs.

RX 30mm RS 26mm

RX - RS1324360210

£228.00

Click here to buy brake pads

Piston 1 size

Piston 2 size

Surface Area (mm2)


44mm

44mm

3041mm

Option  (+£50)

44mm

41mm

2841mm

Option  (+£50)

41mm

41mm

2666mm

Option  (+£0)

44mm

38mm

2655mm

Option  (+£50)

41mm

38mm

2503mm

Option  (+£0)

38mm

38mm

2340mm

Option  (+£0)

41mm

34mm

2273mm

Option  (+£25)

34mm

34mm

1880mm

Option  (+£0)

34mm

31mm

1705mm

Option  (+£25)

31mm

31mm

1529mm

Option  (+£25)

27mm

27mm

1179mm

Option  (+£25)

Pad specifications:


Pad type

RS-132

Pad surface area

59.66 cm2

Pad thickness

12.5mm material / 17.2mm total

Pad volume

74.58 cm3

Piston option

R132-4-race-hispec-caliper

Hispec Line drawing  RS132-4 / RX132-4

Click the image to view technical drawing



HiSpec DUAL  + knock back Pistons Explained


Click on piston

Piston
