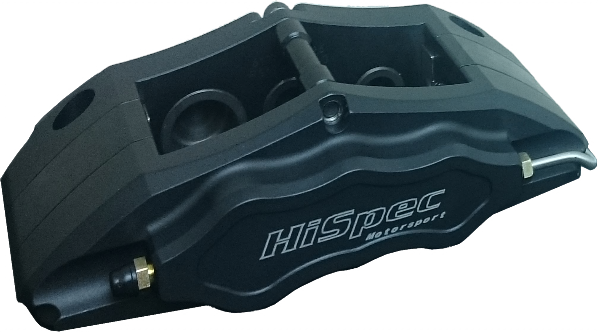

Hi Spec R126-6, RS126-6, RX126-6 Range

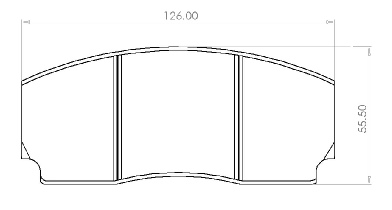

Pad specifications:


Pad type

RS-126

Pad surface area

57.77 cm2

Pad thickness

11.2mm material / 15.8mm total

Pad volume

64.42 cm3

Typical application:

● Front race caliper up to 280mm rotor in 13” wheels  and 315mm rotor in 15” wheels.

Features

● Radial mount 180mm ctrs.


● High temperature EPDM seals.


● 7 Piston Option bores.


● Billet aluminium body race caliper.


● Stainless steel wear plates.


 Billet aluminium piston,   Aluminium anti knock back piston,  DUAL piston on RS & RX only.

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

R-126 Radial 280

Radial 180mm ctrs.

21mm

R126 280

£218.90

RS-126 Radial 280

Radial 180mm ctrs.

26mm

RS126 280

£218.90

RX-126 Radial 280

Radial 180mm ctrs.

30mm

RX126 280

£240.79

R-126 Radial 310

Radial 180mm ctrs.

21mm

R126 310

£218.90

RS-126 Radial 310

Radial 180mm ctrs.

26mm

RS126 310

£218.90

RX-126 Radial 310

Radial 180mm ctrs.

30mm

RX126 310

£240.79

Click here to buy brake pads

Caliper position

25.4mm

25.4mm

25.4mm

1520mm

Special + £75.0

27.4mm

27.4mm

27.4mm

1769mm

Special + £50.0

31.2mm

31.2mm

31.2mm

2294mm

Special + £50.0

31.2mm

27.4mm

27.4mm

1944mm

Special + £50.0

38.6mm

27.4mm

27.4mm

2349mm

Standard option

38.6mm

31.2mm

31.2mm

2699mm

Special + £25.0

38.6mm

31.2mm

27.4mm

2524mm

Special + £75.0

Piston 1 bore size

Piston 2 bore size

Piston 3 bore size

Surface area (mm2)

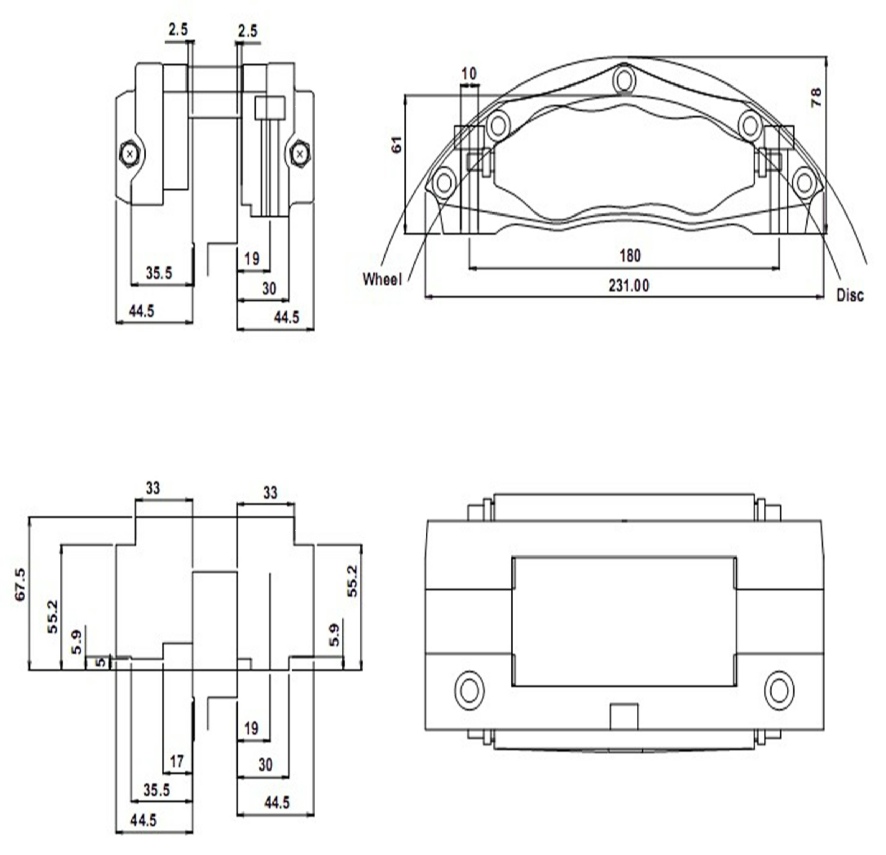

Line drawing for the R126-6 280mm, RS126-6 280mm, RX126-6 280mm

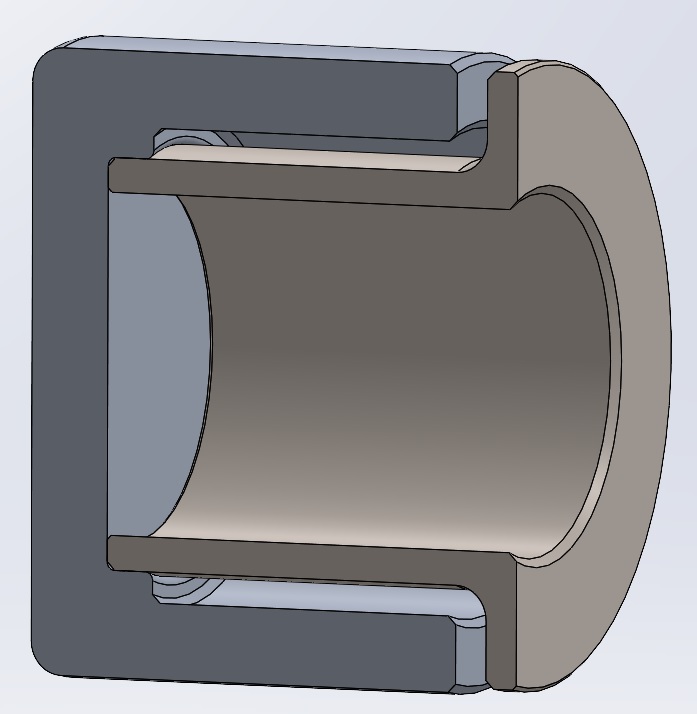

Hi Spec DUAL + knock back pistons explained


Click on piston

Piston

For more information on Hi Spec Calipers please call on 01322 286 850.
