Monster 4 Range
|
Caliper Rotor size |
Mount type |
Price exc VAT |
|
Monster 4 Radial 260mm to 280mm |
Radial 154mm ctrs. |
£250.80 |
|
Monster 4 Radial 280mm to 310mm |
Radial 154mm ctrs. & 180mm ctrs. |
£250.80 |
|
Monster 4 Radial 310mm to 340mm |
Radial 154mm ctrs. & 180mm ctrs. |
£250.80 |
|
Monster 4 Radial 340mm to 370mm |
Radial 154mm ctrs. & 180mm ctrs & 210mm ctrs. |
£250.80 |
|
Monster 4 Lug 280mm to 310mm |
Lug 76mm & 82mm & 89mm & 160mm & 200mm |
£278.30 |
|
Monster 4 Lug 310mm to 340mm |
Lug 76mm & 82mm & 89mm & 160mm & 200mm |
£278.30 |
|
Monster 4 Lug 340mm to 370mm |
Lug 76mm & 82mm & 89mm & 160mm & 200mm |
£278.30 |
|
Piston 1 size |
Piston 2 size |
Surface Area (mm2) |
|
|
44mm |
44mm |
3041mm |
Option (+£50) |
|
44mm |
41mm |
2841mm |
Option (+£50) |
|
41mm |
41mm |
2666mm |
Option (+£0) |
|
44mm |
38mm |
2655mm |
Option (+£50) |
|
41mm |
38mm |
2503mm |
Option (+£0) |
|
38mm |
38mm |
2340mm |
Option (+£0) |
|
41mm |
34mm |
2273mm |
Option (+£25) |
|
34mm |
34mm |
1880mm |
Option (+£0) |
|
34mm |
31mm |
1705mm |
Option (+£25) |
|
31mm |
31mm |
1529mm |
Option (+£25) |
|
27mm |
27mm |
1179mm |
Option (+£25) |
Hi Spec piston options for Monster 4
|
Typical application: |
|
● Front brake upgrade for performance road vehicles. ● Rear caliper for equal balance to Mega monster/ 8- |
|
Pad specifications: |
|
|
Pad type |
RS- |
|
Pad surface area |
59.66 cm2 |
|
Pad thickness |
12.5mm material / 17.2mm total |
|
Pad volume |
74.58 cm3 |
|
Features |
|
● Four large pistons to give equal and balanced braking. ● Stainless steel wear plates. ● Billet aluminium body (6082 T6). ● Optional staggered bores. ● High temperature EPDM seals. ● Billet aluminium pistons (6082 T6). ● Dust boots. |

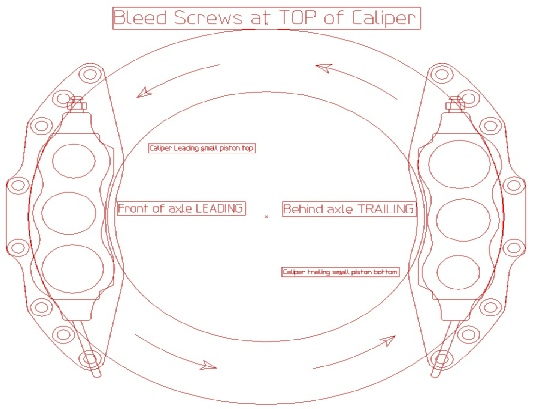

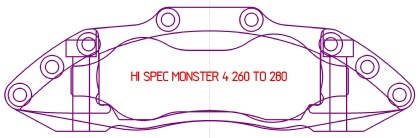

Click on drawing for spec and line drawings Monster 4
Click on drawing for spec and line drawings Monster 4
Click on drawing for spec and line drawings Monster 4
Click on drawing for spec and line drawings Monster 4
For more information on Hi Spec Calipers please call 01322 286 850.
